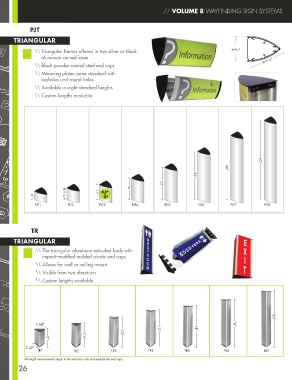

// VOLUME 8 WAYFINDING SIGN SYSTEMS
PJT
TRIANGULAR
\\ Triangular frames offered in two silver or black 6- 5 / 16"
aluminum curved faces 8- 17/ 32"
\\ Black powder-coated steel end caps
\\ Mounting plates come standard with
keyholes and round holes
\\ Available in eight standard heights
\\ Custom lengths available
6"
PJT1 8- 17 / 32" PJT2 11" PJT3 16" PJT4 24" PJT5 36" PJT6 48" PJT7 60" PJT8
TR
TRIANGULAR
\\ The triangular aluminum extruded body with
impact-modified molded plastic end caps
\\ Allows for wall or ceiling mount
\\ Visible from two directions
\\ Custom lengths available
3.54" 10" 12" 14" 16" 20"
3.42” 5" 7.5"
TR1 TR2 TR3 TR4 TR5 TR6 TR7
All length measurements apply to the extrusion only and exclude the end caps.
