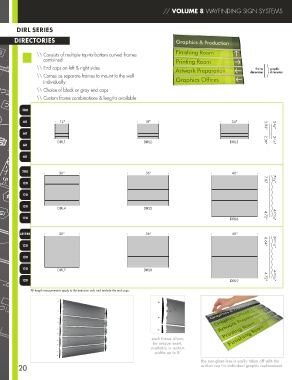

Page 22 - 2020-SignPro-Volumen8-DisplaySolutions

// VOLUME 8 WAYFINDING SIGN SYSTEMS

DIRL SERIES

DIRECTORIES

\\ Consists of multiple top-to-bottom curved frames
combined
\\ End caps on left & right sides frame graphic
dimension dimension
\\ Comes as separate frames to mount to the wall
individually
\\ Choice of black or gray end caps
\\ Custom frame combinations & lengths available

100

60 12" 18" 24" 3.93" 3- 3 / 4"

60
DIRL1 DIRL2 DIRL3 2.36" 2- 1/ 8"
60

60

200 30" 36" 40"

120 7.87 7- 3 / 4"

120

120
DIRL4 DIRL5
120 DIRL6 4.72" 4- 17 / 32"

LETTER 30" 36" 40"

120 8.64" 8- 17/ 32"

120

120 DIRL7 DIRL8

120 DIRL9 4.72" 4- 17 / 32"
All length measurements apply to the extrusion only and exclude the end caps.

each frame allows
for unique insert,
available in custom
widths up to 8’
the non-glare lens is easily taken off with the
20 suction cup for individual graphic replacement
